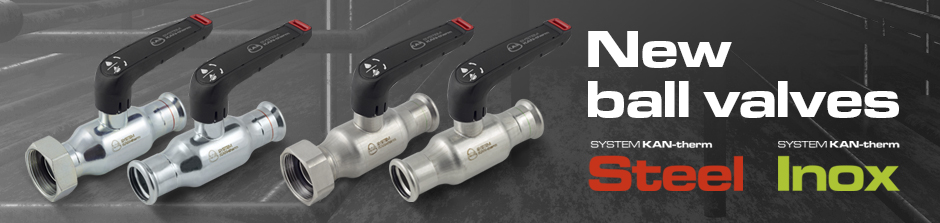

KAN-therm Steel and KAN-therm Inox ball valves

KAN extends the range of KAN-therm Steel and KAN-therm Inox installation systems by system ball valves! The valves are available in two material versions: Steel – galvanised carbon steel and Inox – stainless steel.





You have two types of connector stubs:

  • press x press
  • press x female half union connector

The diameter range (15 - 54 mm) enables wide application in water and central heating installations.

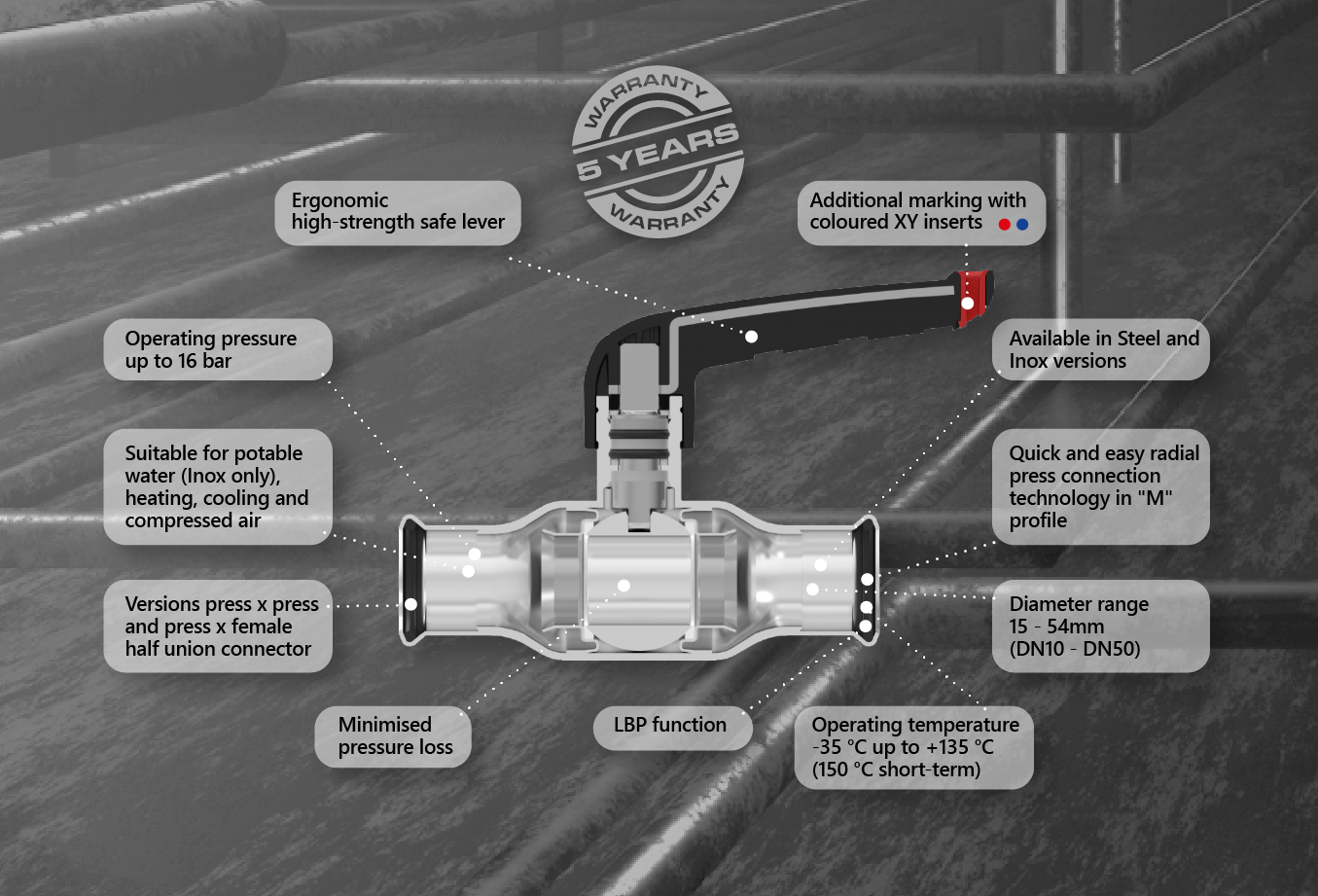

The valve construction not only makes it possible to completely shut off the flow in the installation but what is also important, does not cause unwanted throttling of the flow during open-state. The valves can operate at pressures up to 16 bar and temperatures form -35℃ up to +135℃ which perfectly matches with the high standards of solutions set by KAN-therm Steel and KAN-therm Inox systems

The ergonomic lever of the valve is made of a stainless steel skeleton and polymers reinforced with glass fibre. The lever ensures easy and safe control of the valve and at the same time protects the user from possible burns, which is important in case of installations operating with the medium at high temperatures. Thanks to the interchangeable coloured inserts (red or blue) mounted on the lever, it is possible to visually identify the type of pipe: cold water, hot water, supply, return, etc.

Valves are warranted for 5 years.





KAN-therm Steel ball valves
CODE NAME DIAMETER PACKING
1509278000 Ball valve Steel - 15 15 mm (DN10) 1 / 25 pcs.
1509278001 Ball valve Steel - 18 18 mm (DN15) 1 / 25 pcs.
1509278002 Ball valve Steel - 22 22 mm (DN20) 1 / 15 pcs.
1509278003 Ball valve Steel - 28 28 mm (DN25) 1 / 10 pcs.
1509278004 Ball valve Steel - 35 35 mm (DN32) 1 / 10 pcs.
1509278005 Ball valve Steel - 42 42 mm (DN40) 1 / 7 pcs.
1509278006 Ball valve Steel - 54 54 mm (DN50) 1 / 5 pcs.
1509278007 Female ball valve with half union with flat gasket Steel - 15 G3/4" 15 mm (DN10) 1 / 25 pcs.
1509278008 Female ball valve with half union with flat gasket Steel - 18 G3/4" 18 mm (DN15) 1 / 25 pcs.
1509278009 Female ball valve with half union with flat gasket Steel - 22 G3/4" 22 mm (DN20) 1 / 15 pcs.
1509278010 Female ball valve with half union with flat gasket Steel - 28 G1 1/4" 28 mm (DN25) 1 / 10 pcs.
1509278011 Female ball valve with half union with flat gasket Steel - 35 G1 1/2" 35 mm (DN32) 1 / 10 pcs.
1509278012 Female ball valve with half union with flat gasket Steel - 42 G1 3/4" 42 mm (DN40) 1 / 7 pcs.
1509278013 Female ball valve with half union with flat gasket Steel - 54 G2 1/2" 54 mm (DN50) 1 / 5 pcs.



 KAN-therm Inox ball valves

CODE NAME DIAMETER PACKING
1609278000 Ball valve Inox  - 15 15 mm (DN10) 1 / 25 pcs.
1609278001 Ball valve Inox  - 18 18 mm (DN15) 1 / 25 pcs.
1609278002 Ball valve Inox  - 22 22 mm (DN20) 1 / 15 pcs.
1609278003 Ball valve Inox  - 28 28 mm (DN25) 1 / 10 pcs.
1609278004 Ball valve Inox  - 35 35 mm (DN32) 1 / 10 pcs.
1609278005 Ball valve Inox  - 42 42 mm (DN40) 1 / 7 pcs.
1609278006 Ball valve Inox  - 54 54 mm (DN50) 1 / 5 pcs.
1609278007 Female ball valve with half union with flat gasket Inox - 15 G3/4" 15 mm (DN10) 1 / 25 pcs.
1609278008 Female ball valve with half union with flat gasket Inox - 18 G3/4" 18 mm (DN15) 1 / 25 pcs.
1609278009 Female ball valve with half union with flat gasket Inox - 22 G3/4" 22 mm (DN20) 1 / 15 pcs.
1609278010 Female ball valve with half union with flat gasket Inox - 28 G1 1/4" 28 mm (DN25) 1 / 10 pcs.
1609278011 Female ball valve with half union with flat gasket Inox - 35 G1 1/2" 35 mm (DN32) 1 / 10 pcs.
1609278012 Female ball valve with half union with flat gasket Inox - 42 G1 3/4" 42 mm (DN40) 1 / 7 pcs
1609278013 Female ball valve with half union with flat gasket Inox - 54 G2 1/2" 42 mm (DN40) 1 / 5 pcs.
